Fractals in Clojure - Sierpinski Triangle

This fractal is called the Sierpinski triangle, after the Polish mathematician Waclaw Sierpinski.

In order to generate it we'll use the following algorithm,

  • We pick a triangle on the surface.
  • We shrink the triangle to half the height and width, make three copies, and position the three triangles so that each triangle touches the two other triangles at a corner.
  • We repeat the above step until required depth is reached.
(ns sierpinski
    (:import (java.awt Dimension Polygon Color)
             (javax.swing JFrame JLabel)
             (java.awt.image BufferedImage)))

(defstruct point :x :y)
(defstruct triangle :left :rigth :bottom)

We need two structures for representing a point on the canvas and the triangle we are drawing.

(defn midpoints [trig]
  (struct triangle
          (struct point
                  (/ (+ (:x (:bottom trig)) (:x (:left trig))) 2)
                  (/ (+ (:y (:bottom trig)) (:y (:left trig))) 2))
          (struct point
                  (/ (+ (:x (:rigth trig)) (:x (:bottom trig))) 2)
                  (/ (+ (:y (:rigth trig)) (:y (:bottom trig))) 2))
          (struct point
                  (/ (+ (:x (:left trig)) (:x (:rigth trig))) 2)
                  (/ (+ (:y (:left trig)) (:y (:rigth trig))) 2))))

Given a triangle this function will return a new triangle thats half the original triangle.

(defn paint-triangle [g trig]
  (let  [polygon (new Polygon)]
    (doto polygon
          (.addPoint  (:x (:left trig))   (:y (:left trig)))
          (.addPoint  (:x (:rigth trig))  (:y (:rigth trig)))
          (.addPoint  (:x (:bottom trig)) (:y (:bottom trig))))
    (.drawPolygon g polygon)))

(defn create-triangles [trig step depth g]
  (paint-triangle g trig)
  (let  [points (midpoints trig)
         left   (struct
                 triangle (:left trig) (:left points) (:bottom points))
         rigth  (struct
                 triangle (:rigth trig) (:rigth points) (:bottom points))
         top    (struct
                 triangle (:bottom trig) (:rigth points) (:left points)) ]
    (if (< step depth )
      (do (create-triangles left  (inc step) depth g)
          (create-triangles rigth (inc step) depth g)
          (create-triangles top   (inc step) depth g)))))

create-triangles is a recursive function that will call it self until required depth is reached. It first draws the given triangle then calculate 3 smaller triangles that will be placed inside the parent triangle.

(defn draw [depth width height]
  (let [image  (BufferedImage. width height BufferedImage/TYPE_INT_RGB)
        canvas (proxy [JLabel] []
                 (paint [g] (.drawImage g image 0 0 this)))
        graphics (.createGraphics image)]

    (.setColor graphics Color/white)
    (create-triangles
     (struct triangle
             (struct point 0 height)
             (struct point width height)
             (struct point (/ width 2) 0))
     0 depth graphics)

    (doto (JFrame.)
      (.add canvas)
      (.setSize (Dimension. width height))
      (.show))))

(draw 4 400 400)

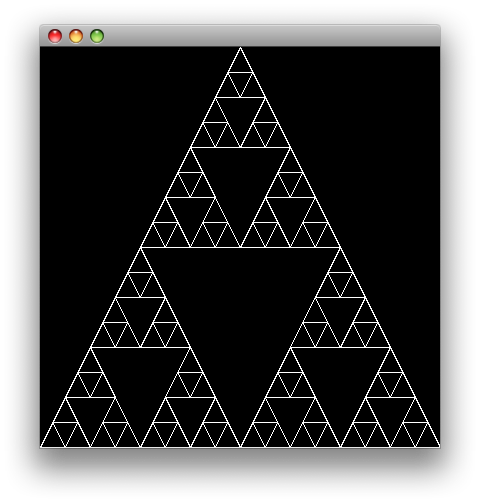

Sierpinski Triangle

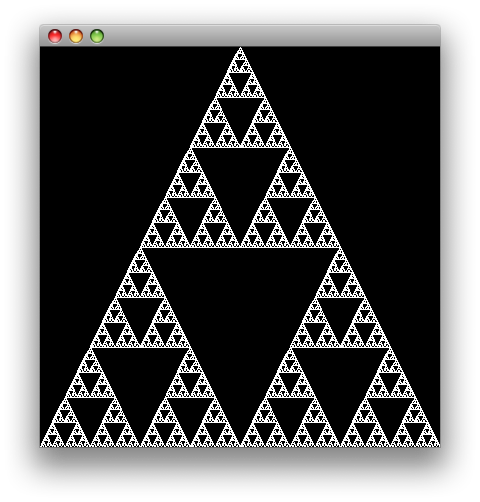

Sierpinski Triangle
